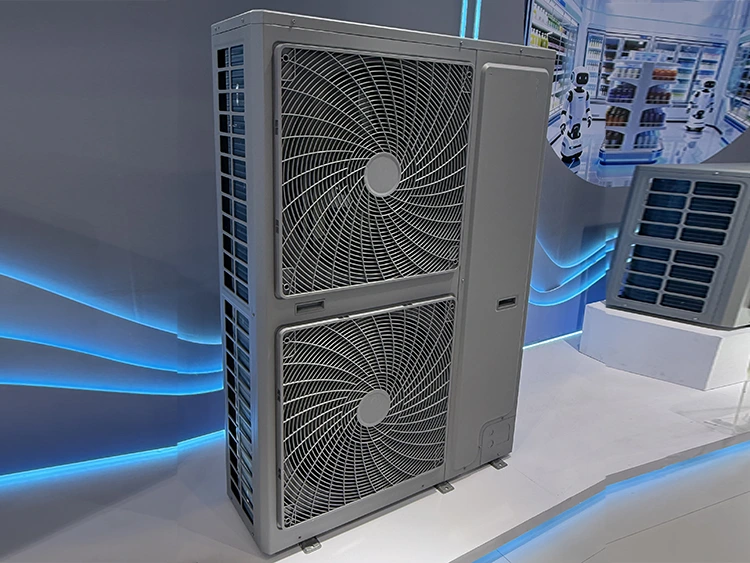

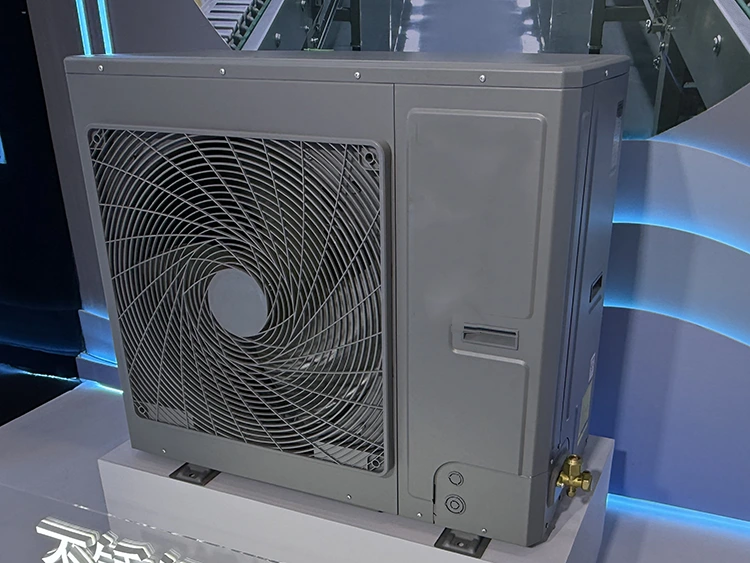

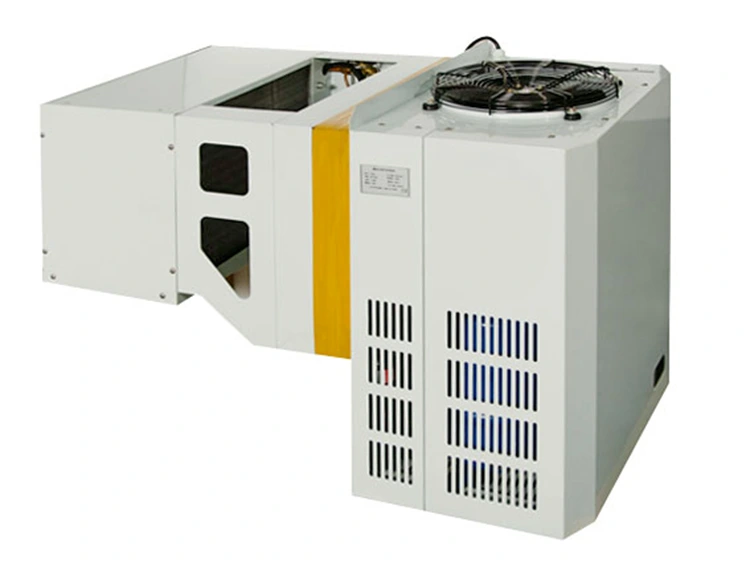

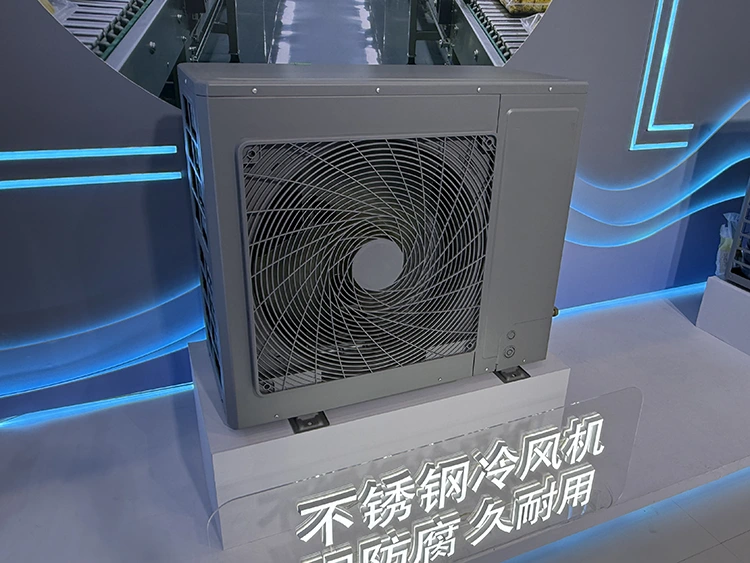

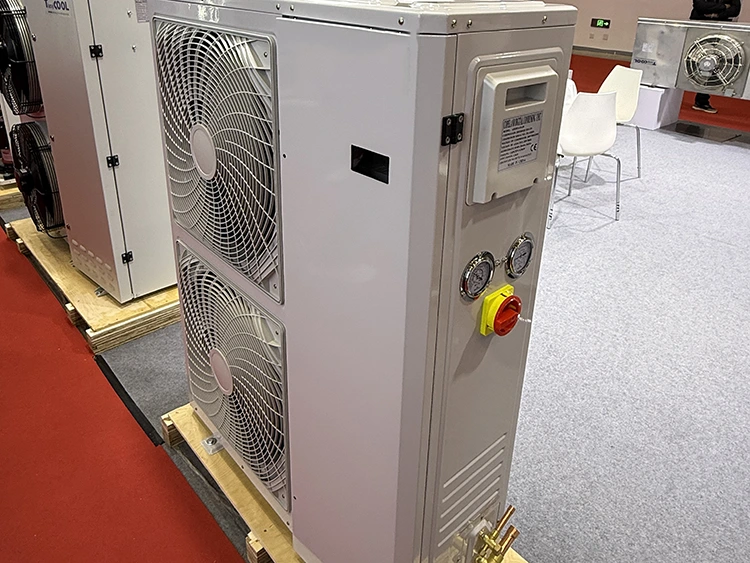

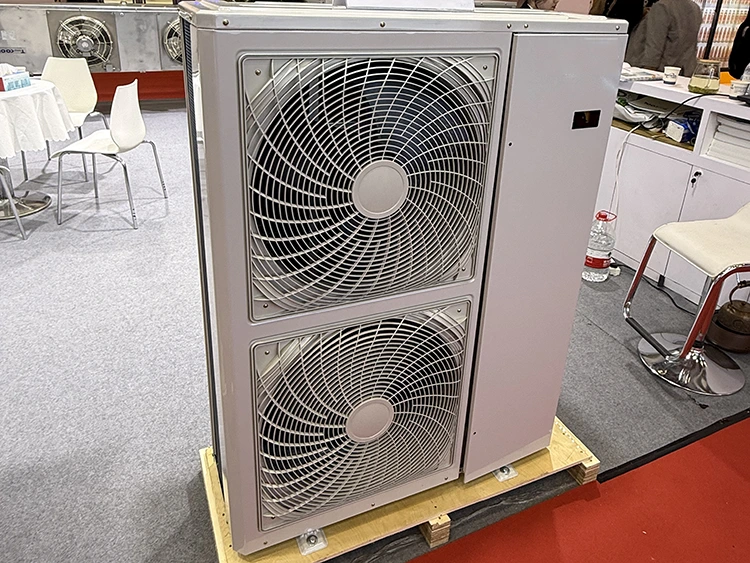

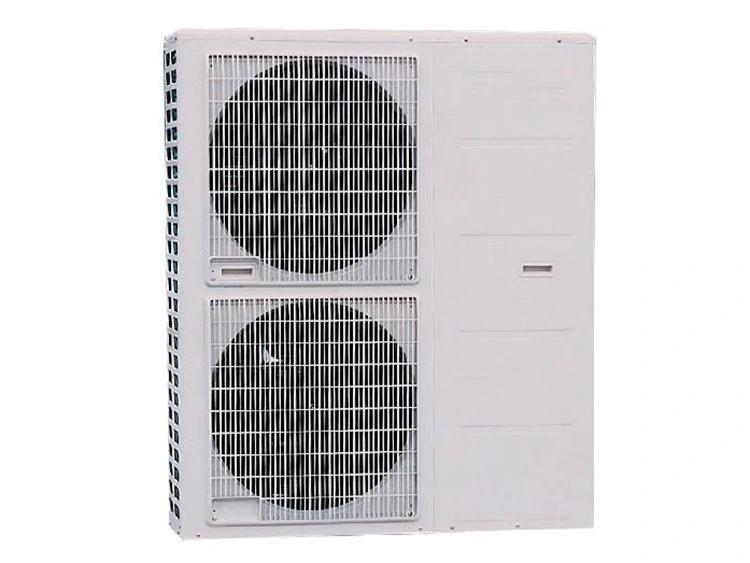

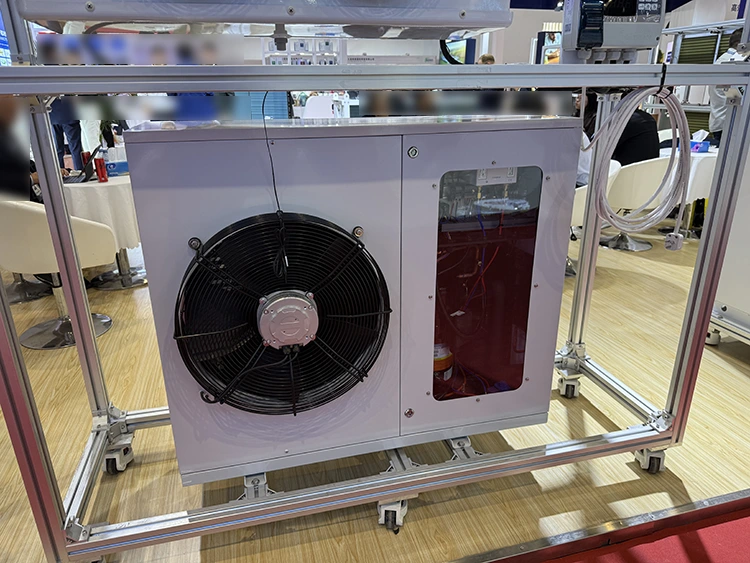

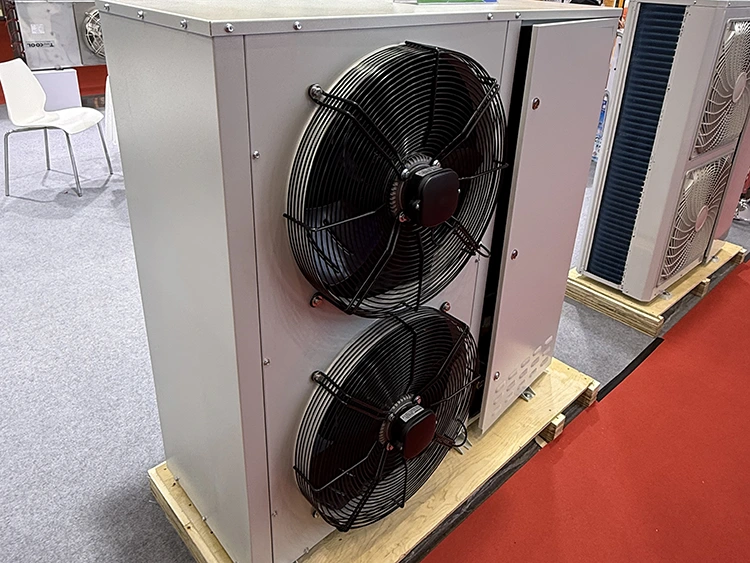

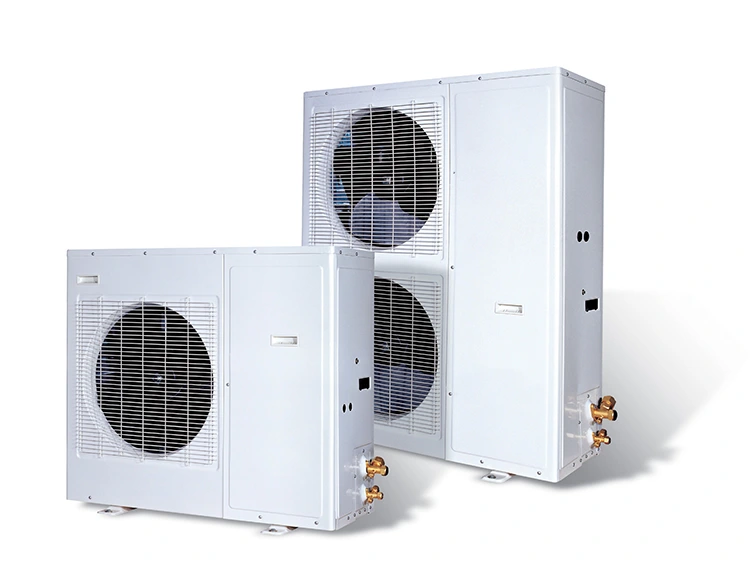

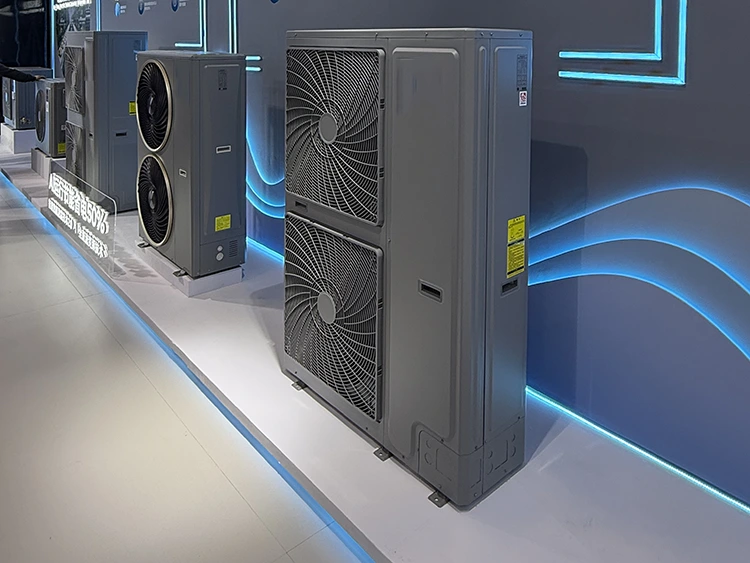

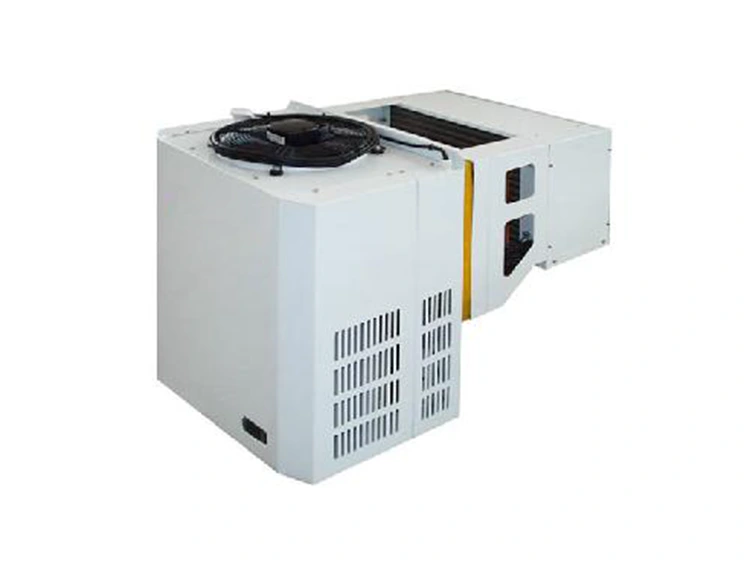

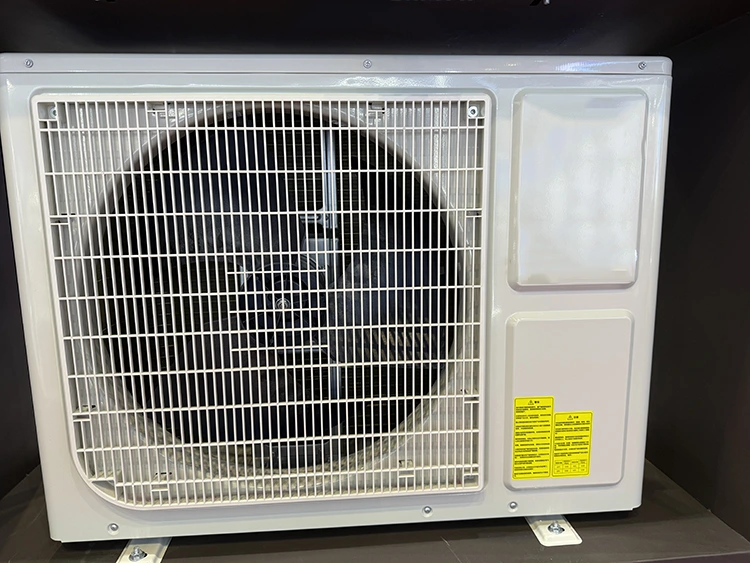

Air-Cooled Scroll Refrigeration Compressor Unit

The Air-Cooled Scroll Refrigeration Compressor Unit is designed for refrigeration projects requiring compact installation, easy operation, and reliable temperature control. The packaged structure combines the main refrigeration components into one system, reducing onsite assembly work compared with traditional separate refrigeration equipment.

Based on Lynxcool’s experience in refrigeration system design, equipment manufacturing, and engineering installation since 2013, this unit is suitable for cold rooms, food processing facilities, pharmaceutical storage, supermarkets, laboratories, and other temperature-controlled applications.

Product Features

Compact Integrated Design

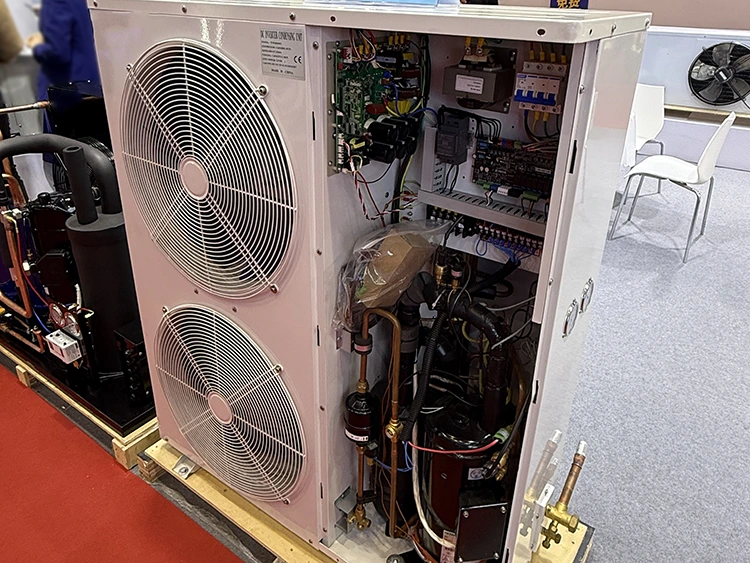

The unit integrates scroll compressors, air-cooled condensers, liquid receivers, expansion valves, electrical controls, and protection devices on a compact skid frame. The factory-assembled design helps reduce installation time and simplifies project coordination.

Its compact structure is suitable for locations with limited equipment space, including small cold storage rooms, commercial refrigeration projects, and light industrial applications.

Scroll Compressor for Stable Operation

The unit uses hermetic scroll compressors with fewer moving parts compared with traditional reciprocating compressors. The scroll compression structure helps reduce vibration and operating noise while maintaining consistent cooling performance.

For higher cooling requirements, multiple scroll compressor configurations are available. The staged operation allows the system to adjust refrigeration output according to actual load conditions.

Air-Cooled Condenser Reduces Maintenance

Unlike water-cooled refrigeration systems, the air-cooled design does not require cooling towers, condenser water pumps, or water treatment equipment. This reduces maintenance work and avoids problems caused by water scaling and corrosion.

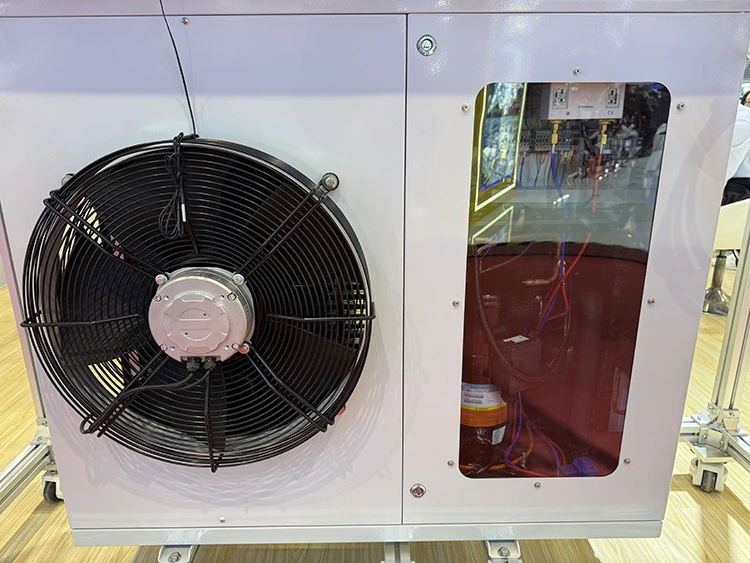

EC fans adjust airflow according to operating conditions, improving condenser control and supporting stable operation in different ambient environments.

Factory Testing and Engineering Support

Each Lynxcool compressor unit is assembled and tested before delivery. The complete system includes refrigeration components, electrical control, safety protection, and monitoring functions.

Lynxcool provides technical documents, installation guidance, commissioning support, and refrigeration engineering services according to customer project requirements.

Working Principle

The Air-Cooled Scroll Refrigeration Compressor Unit operates through the refrigeration cycle of compression, condensation, expansion, and evaporation. The scroll compressor compresses low-pressure refrigerant vapor from the evaporator and sends it to the air-cooled condenser.

The condenser releases heat through the coil and airflow generated by fans, converting the refrigerant into a high-pressure liquid. The electronic expansion valve controls refrigerant flow before it enters the evaporator.

Inside the evaporator, refrigerant absorbs heat from the cold room or process area and returns to the compressor to complete the cycle. The intelligent controller adjusts compressor operation and fan speed according to refrigeration demand.

Technical Parameters

Application Areas

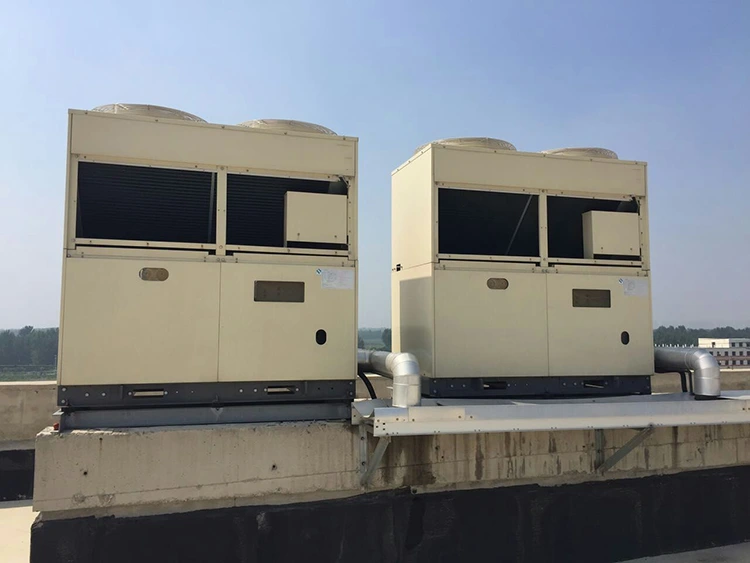

The Air-Cooled Scroll Refrigeration Compressor Unit is widely used in temperature-controlled environments where compact equipment and convenient maintenance are required.

It is suitable for cold chain logistics, food processing, pharmaceutical storage, laboratories, supermarkets, restaurants, and commercial refrigeration systems. The air-cooled structure provides a practical solution for projects without water cooling infrastructure.

Why Choose Lynxcool

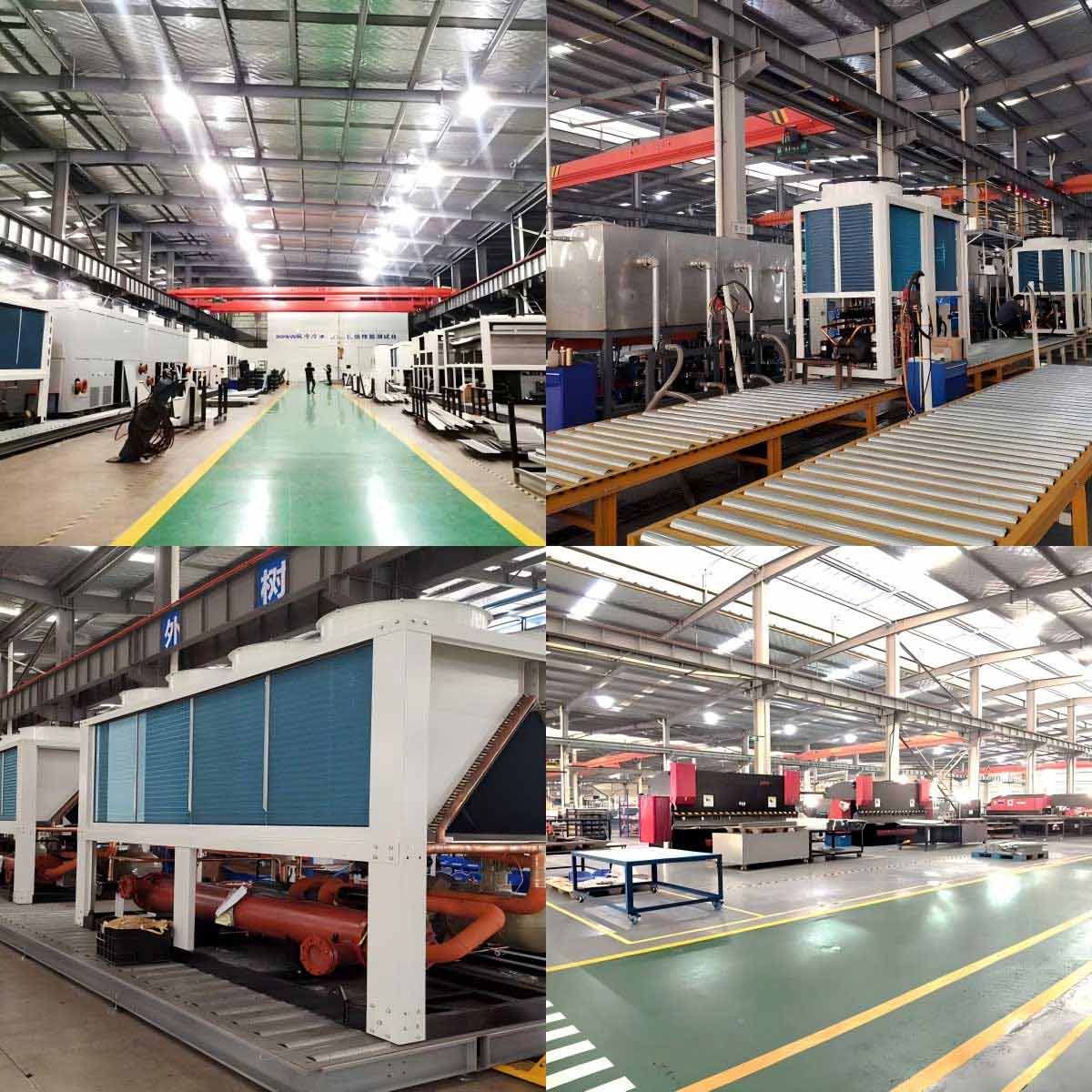

Qingdao Lynxcool Refrigeration Tech Co., Ltd. combines refrigeration equipment manufacturing with engineering project experience. Since 2013, Lynxcool has provided refrigeration solutions for cold storage warehouses, food processing plants, pharmaceutical facilities, and industrial applications.

Unlike suppliers focusing only on individual refrigeration components, Lynxcool provides integrated support covering equipment selection, manufacturing, installation guidance, commissioning, and after-sales service.

With professional refrigeration engineers, manufacturing capability, and global project experience, Lynxcool helps customers build refrigeration systems with practical design, easier installation, and long-term operation reliability.

FAQ

What applications are suitable for this compressor unit?

It is suitable for cold rooms, food storage, pharmaceutical warehouses, laboratories, supermarkets, restaurants, and other commercial refrigeration applications.

What information is needed for model selection?

Lynxcool engineers evaluate cooling capacity, room size, target temperature, ambient conditions, refrigerant requirements, and power supply before recommending a suitable model.

Can the unit work in high temperature environments?

Yes. Lynxcool can provide high ambient temperature configurations according to project requirements.

Does Lynxcool provide installation support?

Yes. Lynxcool provides technical documents, installation guidance, commissioning support, and engineering service for refrigeration projects.

Can the compressor unit be customized?

Yes. Custom options include cooling capacity, refrigerant type, voltage, compressor configuration, and control system according to customer requirements.
