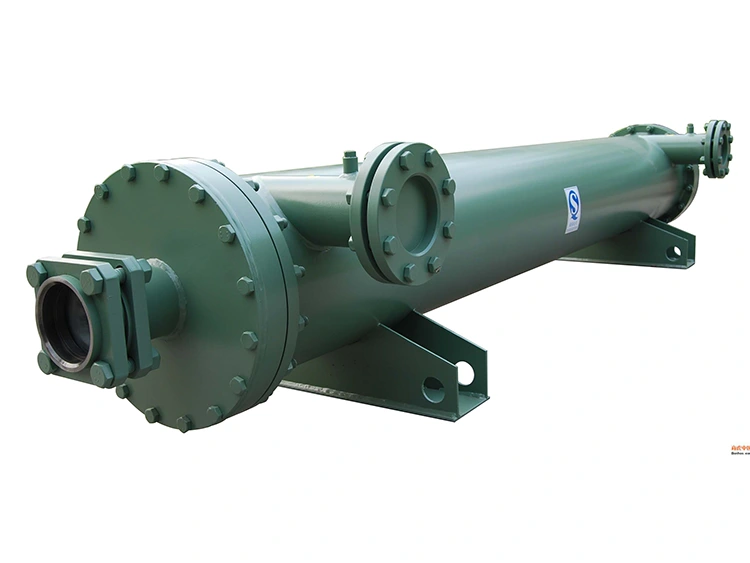

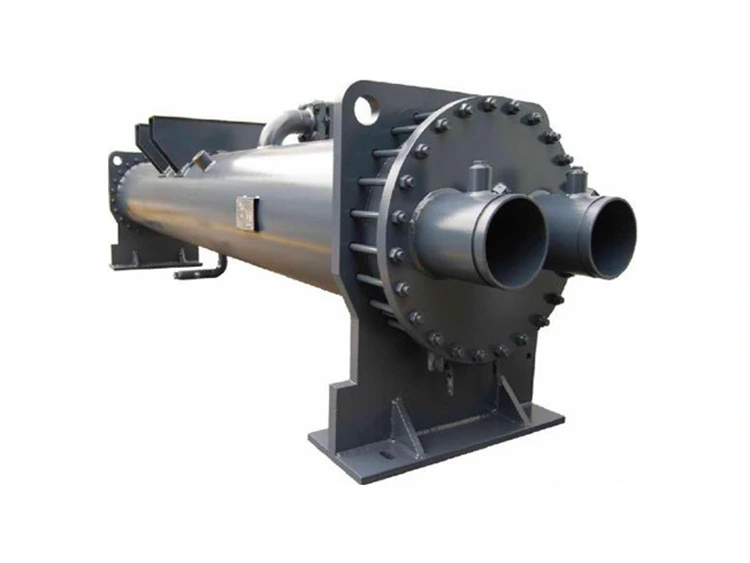

Shell and Tube Evaporator

Lynxcool Shell and Tube Evaporator is an industrial refrigeration heat exchanger designed for large-capacity cooling systems, process cooling applications, and customized refrigeration projects. Manufactured by Qingdao Lynxcool Refrigeration Technology Co., Ltd., the evaporator is developed for applications requiring stable heat transfer, pressure resistance, and long service life under continuous operation.

With flexible configurations for ammonia (R717), CO₂ (R744), HFC refrigerants, chilled water, glycol, and other process fluids, Lynxcool provides shell and tube evaporators for cold storage plants, food processing facilities, chemical industries, pharmaceutical production, and industrial refrigeration systems.

Designed for Industrial Refrigeration Systems

Unlike standard compact heat exchangers, shell and tube evaporators are built for projects where reliability and service life are critical. The robust shell structure, replaceable tube bundle design, and flexible material selection allow Lynxcool units to operate in demanding environments with high cooling loads and strict process requirements.

Qingdao Lynxcool Refrigeration Technology Co., Ltd. specializes in industrial refrigeration equipment development and manufacturing. The company provides customized cooling solutions covering equipment selection, system design support, manufacturing, testing, and after-sales service for global refrigeration projects.

Engineering Advantages

Stable Heat Transfer Performance

The optimized tube arrangement improves refrigerant distribution and heat exchange efficiency. Depending on the application, Lynxcool can provide flooded evaporator designs or direct expansion configurations to match different refrigeration systems and operating conditions.

For large ammonia refrigeration systems, flooded designs provide excellent evaporation efficiency by maintaining sufficient refrigerant contact with the tube surface. For systems requiring reduced refrigerant charge, DX configurations provide a practical solution.

Flexible Material Selection for Different Media

The evaporator can be manufactured with different tube materials according to operating conditions. Copper tubes are commonly used for clean chilled water applications, while stainless steel, titanium, and cupronickel options are available for corrosive environments, seawater cooling, and special industrial processes.

This material flexibility allows the equipment to be adapted for food processing, chemical production, marine cooling, and pharmaceutical applications.

Heavy-Duty Construction for Long-Term Operation

Lynxcool shell and tube evaporators are manufactured using pressure vessel production processes, including welding inspection, pressure testing, and quality verification before shipment. The reinforced shell structure helps maintain reliable operation under high pressure and continuous working conditions.

The tube bundle design also supports easier inspection and maintenance compared with fully integrated heat exchanger structures, helping reduce downtime during long-term operation.

Application Areas

Lynxcool Shell and Tube Evaporator is suitable for industries requiring reliable cooling performance and customized heat exchange solutions.

Industrial Refrigeration Plants

Used in ammonia refrigeration systems, large cold storage warehouses, freezing facilities, and industrial refrigeration stations where stable low-temperature operation is required.

Food Processing and Cold Chain

Provides cooling support for meat processing, seafood freezing, beverage production, dairy processing, and refrigerated warehouses. The stable heat transfer performance helps maintain consistent production conditions.

Chemical and Process Cooling

Compatible with various process fluids through customized material selection. It is suitable for reactor cooling, production line temperature control, and industrial circulation cooling systems.

Pharmaceutical and Laboratory Systems

Designed for applications requiring accurate temperature control, including pharmaceutical manufacturing, clean production environments, and laboratory cooling systems.

Product Configuration Options

Manufacturing Process and Quality Control

Lynxcool controls the complete manufacturing process from material selection to final inspection. Each shell and tube evaporator is produced according to project requirements, including heat transfer calculation, mechanical design, welding, pressure testing, and performance verification.

Material Inspection and Component Preparation

Before production, raw materials including shell plates, tubes, and connection components are inspected to confirm specifications and mechanical properties. Different tube materials are selected according to refrigerant type, process fluid characteristics, and corrosion requirements.

Precision Welding and Assembly

The shell body, tube sheets, and internal components are assembled using controlled welding procedures. Weld quality inspection is performed during production to ensure structural strength and sealing reliability for long-term operation.

Pressure Testing Before Delivery

Every unit undergoes factory pressure testing before shipment. Testing procedures verify the sealing performance of the shell, tube side, and refrigerant circuit, reducing installation risks for customers.

Selection Guide for Engineering Projects

Selecting the correct shell and tube evaporator depends on cooling capacity, refrigerant type, operating temperature, and process requirements. Lynxcool engineers evaluate each project based on actual working conditions rather than providing a standard configuration only.

Why Choose Lynxcool

Qingdao Lynxcool Refrigeration Technology Co., Ltd. is a professional refrigeration equipment manufacturer in China, specializing in the design and production of industrial cooling solutions for cold storage, food processing, cold chain logistics, pharmaceutical, and commercial refrigeration applications.

Unlike general refrigeration equipment suppliers, Lynxcool focuses on complete equipment development and manufacturing. From refrigeration system design, component selection, production control, factory testing to technical support, every stage is managed to ensure stable equipment performance and reliable project delivery.

Experienced Refrigeration Equipment Manufacturer

Lynxcool has extensive experience in manufacturing cold storage refrigeration equipment, including high-temperature, medium-temperature, low-temperature unit coolers, evaporators, and customized industrial refrigeration products. The company understands different application requirements and provides solutions based on actual operating conditions.

Engineering-Based Product Development

With professional refrigeration engineers and manufacturing teams, Lynxcool provides technical support from the early design stage. Cooling capacity calculation, equipment selection, refrigerant compatibility, installation requirements, and system matching can be evaluated according to each project.

Manufacturing Capability and Quality Control

Lynxcool controls product quality through standardized manufacturing processes, material inspection, precision assembly, and performance testing before delivery. This manufacturing approach helps customers reduce installation risks and maintain reliable operation after commissioning.

Customized Solutions for Different Industries

Different industries have different temperature, humidity, and operating requirements. Lynxcool provides customized refrigeration solutions for food processing plants, cold warehouses, pharmaceutical storage facilities, logistics centers, and industrial cooling projects.

Complete Support from Project Planning to After-Sales

Lynxcool supports customers throughout the equipment lifecycle, including technical consultation, product selection, manufacturing, installation guidance, commissioning support, and maintenance service. This helps international customers complete refrigeration projects with greater efficiency and confidence.

Installation and Maintenance Considerations

Proper installation and regular maintenance are important for maintaining heat transfer efficiency and extending equipment service life.

Installation Requirements

Before installation, confirm the equipment weight, connection dimensions, refrigerant direction, and system pressure requirements. The evaporator should be installed on a stable foundation with sufficient space for inspection and maintenance.

Routine Maintenance

Regular inspection of refrigerant pressure, water quality, tube condition, and insulation performance helps maintain stable operation. For systems with high operating hours, scheduled cleaning of the tube surface can improve long-term heat transfer efficiency.

FAQ

Q: What applications require a shell and tube evaporator instead of a plate heat exchanger?

A: Shell and tube evaporators are commonly selected for large-capacity industrial refrigeration systems where higher durability, easier maintenance, and compatibility with different refrigerants or process fluids are required.

Q: Can Lynxcool manufacture evaporators according to existing equipment drawings?

A: Yes. Customers can provide existing equipment drawings, nameplate information, or operating parameters. Lynxcool can develop replacement units according to project requirements.

Q: Which refrigerants can be used with this evaporator?

A: The evaporator can be designed for ammonia R717, CO₂ R744, HFC refrigerants, and other refrigeration media depending on pressure, temperature, and material requirements.

Q: How does Lynxcool prevent corrosion problems?

A: Material selection is based on the operating environment. Copper, stainless steel, titanium, and cupronickel tubes are available for different fluids and corrosion conditions.

Q: Is the evaporator suitable for continuous industrial operation?

A: Yes. The reinforced shell structure, pressure-tested design, and durable components allow continuous operation in industrial refrigeration systems.

Q: What information is needed for equipment selection?

A: Customers should provide cooling capacity, refrigerant type, inlet and outlet temperatures, process fluid information, operating pressure, and installation requirements. Lynxcool engineers will recommend a suitable configuration.

Q: Does Lynxcool provide technical support after delivery?

A: Yes. Lynxcool provides installation guidance, commissioning support, maintenance advice, and technical assistance throughout the equipment lifecycle.

Q: What certifications are available?

A: According to project requirements, Lynxcool can provide relevant manufacturing documents, pressure test reports, quality records, and certification documents for industrial refrigeration projects.
